RIFE Hall Effect Speed Sensor / Wheel Speed Sensor 52-1043

Rife Sensors’ Hall Effect Speed Sensor is a true Zero-Speed, Low-Jitter, High-Accuracy sensor used for sensing ferrous targets, tone rings, or gear teeth.

Applications:

• Wheel Speed
• Driveshaft Speed
• Position Sensing

We are not recommending it for crankshaft or camshaft signaling.

 Setup and Wiring Instructions:

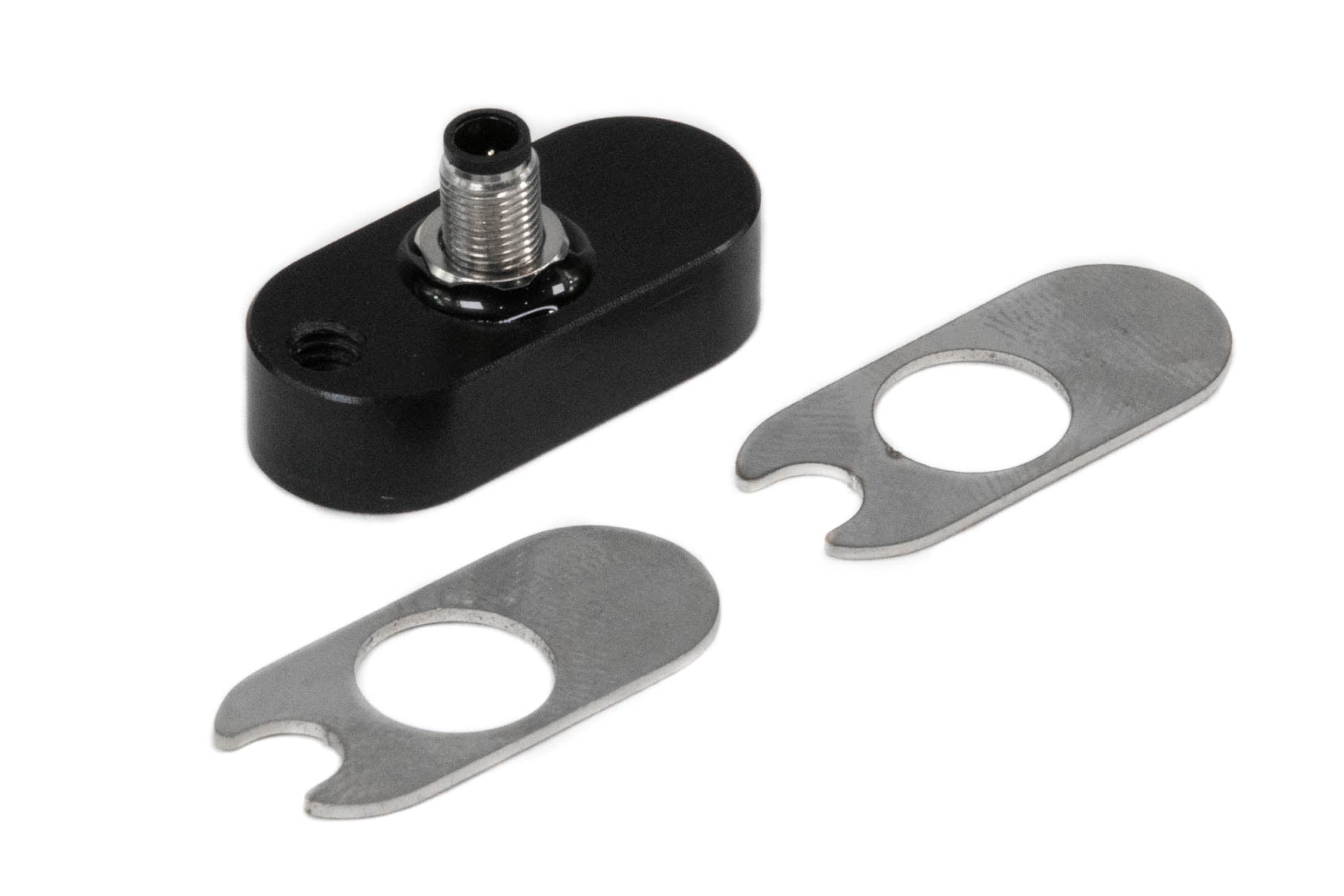

This Speed Sensor is packaged, along with the necessary electronics, in a billet aluminum housing and sealed with epoxy.  All of the signal conditioning is done within the Sensor Body itself and requires no external configuration. The connector is a sealed M5 3-pin connector, cables are available through RIFE Sensors in a variety of configurations and lengths.

For M5 Cable Options Click Here:

DIY Finishing kit (Part# 52-1309) includes straight connector and adhesive heat-shrink for custom length cables (soldering required):

If removing or changing an end on this cable to adapt to a non standard m5 connector the wire colors / pinouts are as follows so long as you are using RIFE supplied M5 cables

Brown: Signal Out

Black: Sensor Power

Blue: Sensor Ground
