T4/S400/GT55 Turbo Low Profile Oil Feed Flange 21-10010 - High Performance Turbocharger Oil Line Adapter for Diesel & Gas Engines (Ideal for Racing, Towing & Performance Upgrades)

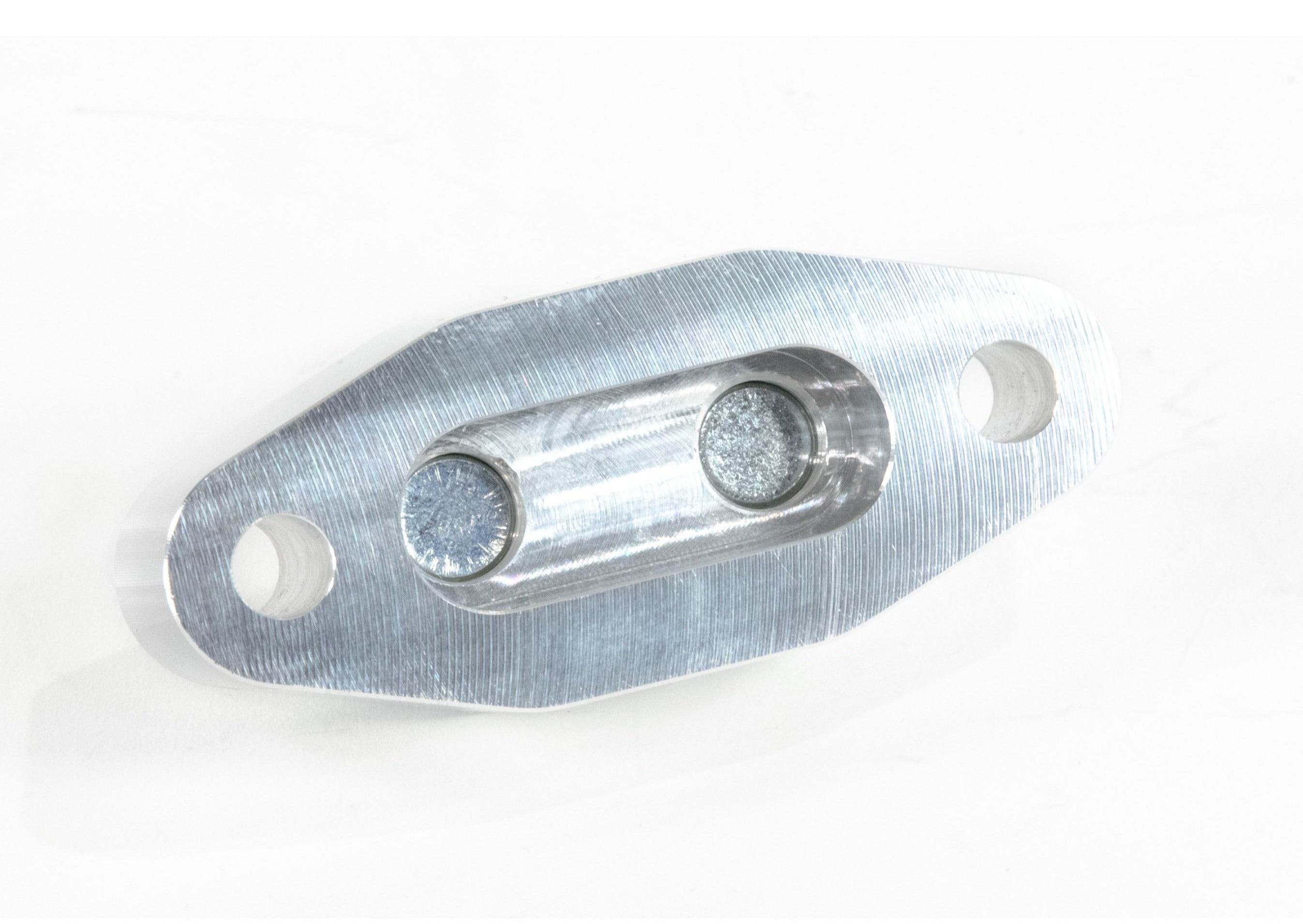

T4 and S400 Turbo Low-Pro Oil Feed Flange 21-10010

Motion Raceworks Low-Pro Oil Flange fixes two of the biggest headaches with oil feeds on turbos. Those are, routing and tightening the pesky hose due to the covers being in the way. This solves BOTH in one piece.

Compatibility:

T3, T4, S400, GT55 turbos that have two bolt flange with 1.500" spacing between bolt centers. Note, turbos without bolt holes on the turbo feed will not be compatible with this product.

Note:  This flange will fit many turbos, if the bolt spacing measures 1.50”, it will fit.

Note:  Not all t4 turbos have bolt holes for oil feed flanges, if yours does not have bolt holes this will of course not work.

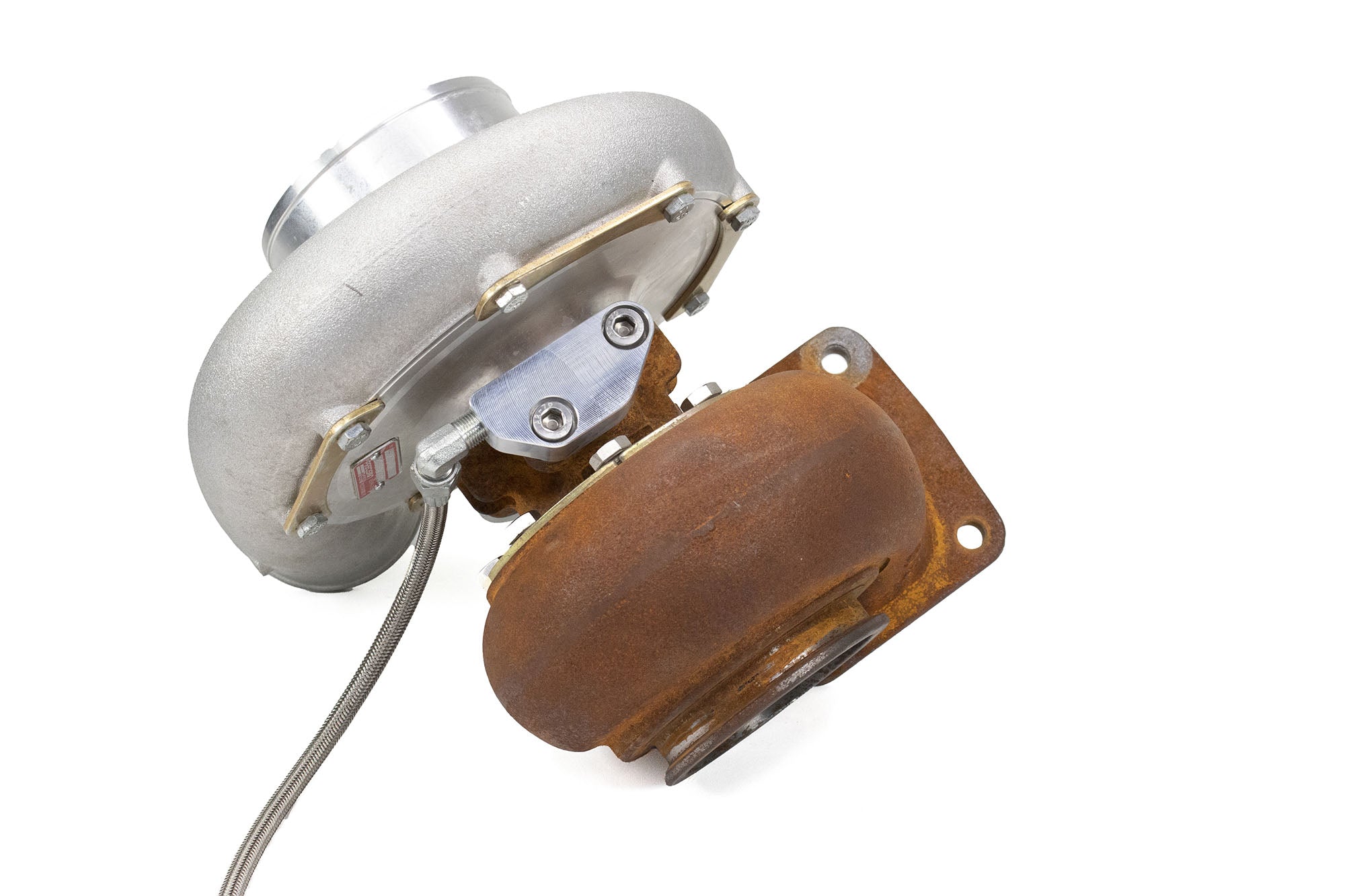

This adapter uses an O-ring seal to bolt to the top of a T4 and midframe T5 style turbos.  This then redirects the oil 90°'s to an 1/8" NPT female port that allows you to elegantly angle a straight or 90° fitting for better hose routing. This positioning also allows you to tighten the hose much easier.

Comes with hardware.
